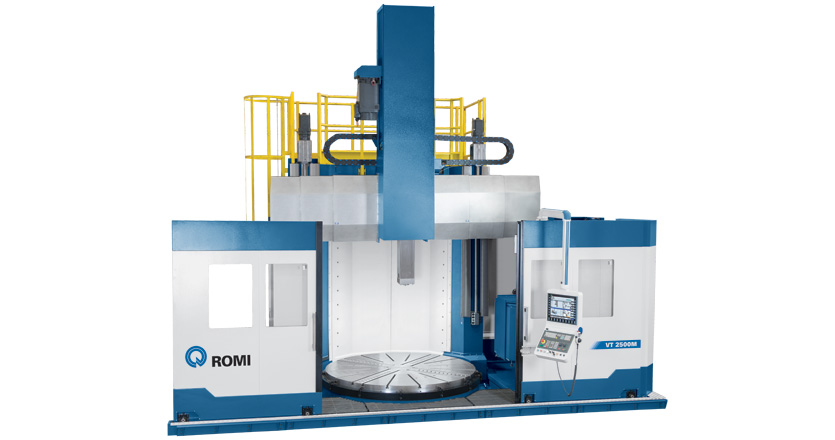

Heavy Duty CNC Vertical Lathes
HEAVY DUTY CNC VERTICAL LATHES
Details
Overview Specs
| VT 1400M | VT 2000M | VT 2500M | ||
|---|---|---|---|---|
| Maximum cutting diameter | mm | 1,600 | 2,200 | 2,700 |
| Maximum swing diameter | mm | 1,800 | 2,300 | 2,800 |
| Chuck diameter | kg | 1,400 | 2,000 | 2,500 |
| Speed range | ASA | 1 ~ 335 | 1 ~ 250 | 1 ~ 180 |
| Max. Torque (C Axis) | N.m (lbt.ft) | 31,500 (23,200) | 39,000 (28,765) | 52,000 (38,350) |
| Power | hp / KW | 84 / 62 | 84 / 62 | 84 / 62 |
