Sheet Metal Processing

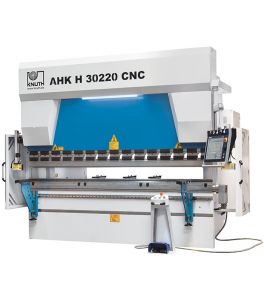

Press Brakes AHK H CNC
Details
Overview Specs
Technical Data
Working area
Plate thickness (max.) 4 mm
Roller distance max. 132 mm
Throat 300 mm
Speed 15 1/min
Drive capacity
Motor rating 2,2 kW
Measures and weights
Overall dimensions (length x width x height) 1,65×0,58×1,4 m
Weight 341 kg
Part No. 130021

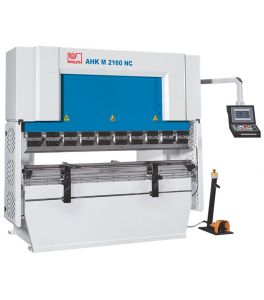

Press Brakes AHK M NC
Details
Overview Specs
Technical Data
| AHK M 1230 NC | AHK M 1540 NC | AHK M 2160 NC | |
| Working area | |||
| Pressure force | 30 t | 40 t | 60 t |
| Brake length | 1.250 mm | 1.550 mm | 2.100 mm |
| Distance between columns | 1.010 mm | 1.260 mm | 1.700 mm |
| Throat | 255 mm | 320 mm | 320 mm |
| Stroke | 150 mm | 160 mm | 160 mm |
| Travels | |||
| Travel in X-axis | 500 mm | 600 mm | 600 mm |
| Feed | |||
| Bending speed | 10 mm/s | ||
| Rapid feed | 70 mm/s | 90 mm/s | 90 mm/s |
| Drive capacity | |||
| Motor rating main drive | 3 kW | 5,5 kW | 7,5 kW |
| Motor rating X-axis | 0,55 kW | 0,75 kW | 0,75 kW |
| Motor rating R-axis | 0,25 kW | ||
Press Brakes AHK H 30175 CNC
Details
Overview Specs
Technical Data
Working area
Pressure force 175 t
Brake length 3.100 mm
Distance between columns 2.600 mm
Throat 410 mm
Stroke 265 mm
Clear opening 485 mm
Table width 108 mm
Travels
Travel in X-axis 700 mm

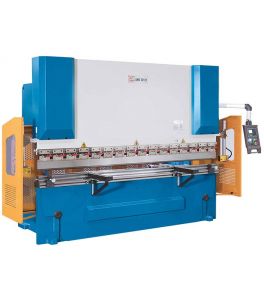

CNC Press Brakes AHK 32125 NC
Details
Overview Specs
Technical Data
Working area
Pressure force 127 t
Brake length 3.200 mm
Distance between columns 2.600 mm
Throat 320 mm
Y-axis stroke 120 mm
Bending speed 8 mm/s
Return speed 66 mm/s
Z axis rapid feed 60 mm/s
Rear stop 570 mm
Clear opening 390 mm
Table height 865 mm
Table width 200 mm

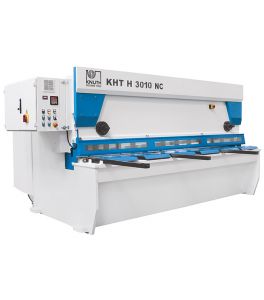

Hydraulic Guillotine Shears KHT H NC
Details
Overview Specs
Technical Data
| KHT H 3006 NC | KHT H 2006 NC | KHT H 2506 NC | KHT H 3008 NC | KHT H 3010 NC | KHT H 3013 NC | KHT H 4006 NC | KHT H 4010 NC | KHT H 4013 NC | |
| Working area | |||||||||
| Plate thickness (max.) | 6 mm | 6 mm | 6 mm | 8 mm | 10 mm | 13 mm | 6 mm | 10 mm | 13 mm |
| Working length | 3.080 mm | 2.080 mm | 2.580 mm | 3.080 mm | 3.080 mm | 3.080 mm | 4.080 mm | 4.080 mm | 4.080 mm |
| Cutting angle | 0,3 – 2 deg | 0,3 – 2 deg | 0,3 – 2 deg | 0,3 – 2 deg | 0,3 – 2 deg | 0,3 – 2,3 deg | 0,3 – 2 deg | 0,3 – 2 deg | 0,3 – 2,3 deg |
| Hold-down | 13 Pieces | 10 Pieces | 12 Pieces | 16 Pieces | 16 Pieces | 16 Pieces | 20 Pieces | 20 Pieces | 19 Pieces |
| Hold-down capacity | 16 t | 15 t | 15 t | 20 t | 20 t | 38 t | 25 t | 25 t | 45 t |
| Throat | 150 mm | ||||||||
| Strokes per minute | 7 H/min | ||||||||
| Table size | 4.400x580x860 mm | ||||||||
| Back Gauge | |||||||||
| Rear stop | 1.000 mm | ||||||||
| Feed speed X-axis | 100 mm/min | ||||||||
| Front Support Arms | |||||||||
| Number of support arms | 3 Pieces | 2 Pieces | 3 Pieces | 3 Pieces | 3 Pieces | 3 Pieces | 4 Pieces | 4 Pieces | 4 Pieces |
| Length of support arms | 900 mm | ||||||||

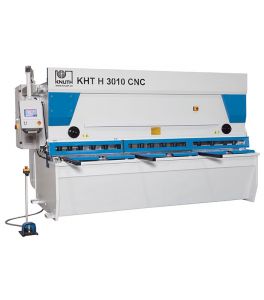

Hydraulic Guillotine Shears KHT H CNC
Details
Overview Specs
Technical Data
| KHT H 3006 CNC | KHT H 3010 CNC | KHT H 3013 CNC | KHT H 3016 CNC | KHT H 4006 CNC | KHT H 4010 CNC | KHT H 4013 CNC | KHT H 6006 CNC | KHT H 4016 CNC | |
| Working area | |||||||||
| Plate thickness (max.) | 6 mm | 10 mm | 13 mm | 16 mm | 6 mm | 10 mm | 13 mm | 6 mm | 16 mm |
| Working length | 3.080 mm | 3.080 mm | 3.080 mm | 3.080 mm | 4.080 mm | 4.080 mm | 4.080 mm | 6.100 mm | 4.080 mm |
| Throat | 150 mm | ||||||||
| Cutting angle | 0,3 – 2 deg | 0,3 – 2 deg | 0,3 – 2,3 deg | 0,3 – 2,5 deg | 0,3 – 2 deg | 0,3 – 2 deg | 0,3 – 2,3 deg | 0,3 – 1,5 deg | 0,3 – 2,5 deg |
| Strokes per minute | 20 H/min | 19 H/min | 19 H/min | 14 H/min | 17 H/min | 18 H/min | 16 H/min | 13 H/min | 13 H/min |
| Hold-down | 13 Pieces | 16 Pieces | 16 Pieces | 18 Pieces | 20 Pieces | 20 Pieces | 19 Pieces | 29 Pieces | 20 Pieces |
| Hold-down capacity | 16 t | 20 t | 25 t | 40 t | 25 t | 25 t | 50 t | 35 t | 50 t |
| Table size | 3.330x495x800 mm | 3.350x520x820 mm | 3.360x550x830 mm | 3.380x550x840 mm | 4.370x500x820 mm | 4.380x530x820 mm | 4.400x580x850 mm | 6.280x590x900 mm | 4.400x600x900 mm |
| Back Gauge | |||||||||
| Rear stop | 1.000 mm | ||||||||
| Feed speed X-axis | 100 mm/min | ||||||||

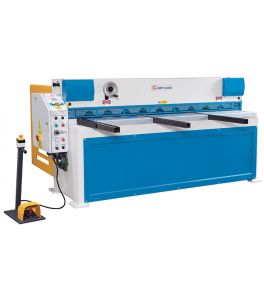

Motorized Guillotine Shears KMT S
Details
Overview Specs
Technical Data
| KMT S 1353 | KMT S 1553 | KMT S 2053 | KMT S 2552 | KMT S 3052 | |
| Working area | |||||
| Structural steel plate thickness | 0,1 – 3 mm | 0,1 – 3 mm | 0,1 – 3 mm | 0,1 – 2,5 mm | 0,1 – 2 mm |
| Plate thickness stainless steel | 1,5 mm | 1,5 mm | 1,5 mm | 1,25 mm | 1 mm |
| Working length | 1.350 mm | 1.550 mm | 2.050 mm | 2.550 mm | 3.050 mm |
| Cutting angle | 2,32 deg | 2,05 deg | 1,58 deg | 1,3 deg | 1,3 deg |
| Work table height | 840 mm | ||||
| Work table depth | 390 mm | ||||
| Number of support arms | 2 Pieces | 2 Pieces | 3 Pieces | 3 Pieces | 4 Pieces |
| Support arms | 940 mm | ||||
| Strokes per minute | 34 H/min | ||||
| Back Gauge | |||||
| Rear stop | 750 mm | ||||

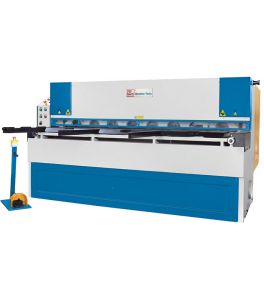

Motorized Guillotine Shears KMT S NC
Details
Overview Specs
Technical Data
| KMT S 2054 NC | KMT S 2554 NC motorized shear | KMT S 3054 NC motorized shear | |
| Working area | |||
| Structural steel plate thickness | 0,1 – 4 mm | ||
| Plate thickness stainless steel | 2 mm | ||
| Working length | 2.050 mm | 2.550 mm | 3.050 mm |
| Cutting angle | 1,3 deg | ||
| Work table height | 810 mm | ||
| Work table depth | 455 mm | ||
| Number of support arms | 3 Pieces | 3 Pieces | 4 Pieces |
| Support arms | 940 mm | ||
| Strokes per minute | 29 H/min | ||
| Back Gauge | |||
| Rear stop | 750 mm | ||

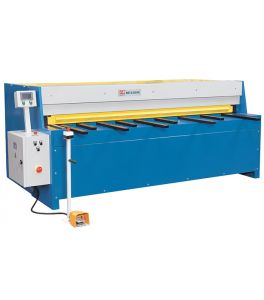

Motorized Guillotine Shears KMT B NC
Details
Overview Specs
Technical Data
| KMT B 1304 NC | KMT B 2552 NC | KMT B 2554 NC | |
| Working area | |||
| Structural steel plate thickness | 0,8 – 4 mm | 0,8 – 2 mm | 0,8 – 4 mm |
| Working length | 1.300 mm | 2.550 mm | 2.550 mm |
| Cutting angle | 2,4 deg | 1,6 deg | 1,8 deg |
| Strokes per minute (automatic mode) | 30 H/min | ||
| Knife length | 1.353 mm | 2.570 mm | 2.570 mm |
| Work table height | 830 mm | ||
| Support arms | 600 mm | ||
| Number of support arms | 5 Pieces | ||
| Back Gauge | |||
| Rear stop | 630 mm | ||

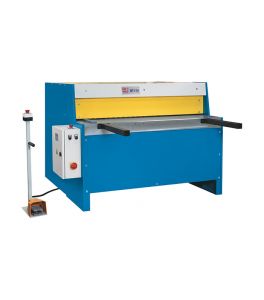

Motorized Guillotine Shears KMT B
Details
Overview Specs
Technical Data
| KMT B 1253 | KMT B 1254 | KMT B 2052 | KMT B 2053 | |
| Working area | ||||
| Structural steel plate thickness | 0,8 – 3 mm | 0,8 – 4 mm | 0,8 – 2 mm | 0,8 – 3 mm |
| Working length | 1.250 mm | 1.250 mm | 2.050 mm | 2.050 mm |
| Cutting angle | 2 deg | 2,4 deg | 2 deg | 2 deg |
| Strokes per minute (automatic mode) | 30 H/min | |||
| Knife length | 1.350 mm | 1.350 mm | 2.100 mm | 2.100 mm |
| Work table height | 830 mm | |||
| Support arms | 600 mm | |||
| Number of support arms | 2 Pieces | 2 Pieces | 3 Pieces | 3 Pieces |
| Back Gauge | ||||
| Rear stop | 630 mm | |||

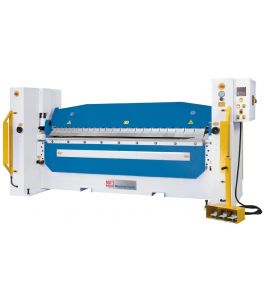

Hydraulic Folding Machines HBM
Details
Overview Specs
Technical Data
| HBM 2045 | HBM 2065 | HBM 2545 | HBM 2565 | HBM 3145 | HBM 3165 | |
| Working area | ||||||
| Working length | 2.035 mm | 2.035 mm | 2.540 mm | 2.540 mm | 3.100 mm | 3.100 mm |
| Bending capacity, structural steel | 4,5 mm | 6,5 mm | 4,5 mm | 6,5 mm | 4,5 mm | 6,5 mm |
| Bending capaicty, stainless steel | 3 mm | 4,5 mm | 3 mm | 4,5 mm | 3 mm | 4,5 mm |
| Bending bar angle (range) | 0-135° | |||||
| Top beam travel | 100 mm | |||||
| Adj. lower bending beam | 25 mm | |||||
| Drive capacity | ||||||
| Motor rating main drive | 5,5 kW | 7,5 kW | 5,5 kW | 7,5 kW | 5,5 kW | 7,5 kW |
| Measures and weights | ||||||
| Hydraulic tank volume | 90 l | |||||

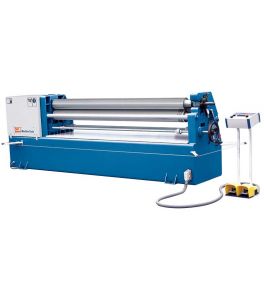

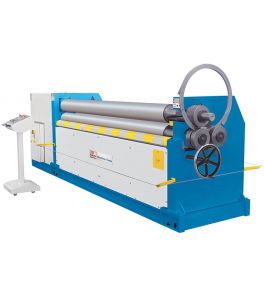

3 Rolls Motorized Plate Rolling Machines KRM-ST
Details
Overview Specs
Technical Data
| KRM ST 15/8 | KRM ST 20/6 | KRM ST 20/7 | KRM ST 25/5 | KRM ST 25/6 | KRM ST 30/4 | KRM ST 30/5 | |
| Working area | |||||||
| Working length | 1.550 mm | 2.050 mm | 2.050 mm | 2.550 mm | 2.550 mm | 3.050 mm | 3.050 mm |
| Plate thickness (max.) | 8 mm | 6 mm | 7 mm | 5 mm | 6 mm | 4 mm | 5 mm |
| Max. plate thickness for bending | 7 mm | 5 mm | 6 mm | 4 mm | 5 mm | 3 mm | 4 mm |
| Bending diameter (min.) | 255 mm | 255 mm | 285 mm | 270 mm | 285 mm | 285 mm | 300 mm |
| Roll diameter | 170 mm | 170 mm | 190 mm | 180 mm | 190 mm | 190 mm | 200 mm |
| Drive capacity | |||||||
| Motor rating main drive | 4 kW | ||||||

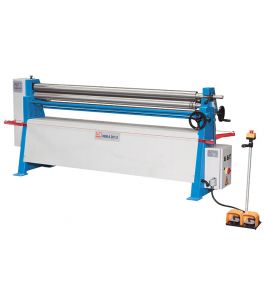

3 Rolls Motorized Plate Rolling Machines KRM-A
Details
Overview Specs
Technical Data
| KRM-A 10/3.0 | KRM-A 12/2.5 | KRM-A 15/2.2 | KRM-A 20/1.5 | |
| Working area | ||||
| Working length | 1.050 mm | 1.250 mm | 1.550 mm | 2.050 mm |
| Plate thickness (max.) | 3,3 mm | 3 mm | 2,5 mm | 1,8 mm |
| Max. plate thickness for bending | 3 mm | 2,5 mm | 2,2 mm | 1,5 mm |
| Bending diameter (min.) | 130 mm | 130 mm | 130 mm | 135 mm |
| Roll diameter | 90 mm | 90 mm | 90 mm | 95 mm |
| Roller speed | 6 m/min | |||
| Drive capacity | ||||
| Motor rating main drive | 1,1 kW | |||
3 Rolls Motorized Plate Rolling Machines KRM
Details
Overview Specs
Technical Data
| KRM 10/4.0 | KRM 10/5.0 | KRM 12/3.5 | KRM 12/4.0 | KRM 12/5.0 | KRM 15/3.0 | KRM 15/4.0 | KRM 20/3.0 | KRM 20/4.0 | |
| Working area | |||||||||
| Working length | 1.050 mm | 1.050 mm | 1.250 mm | 1.250 mm | 1.250 mm | 1.550 mm | 1.550 mm | 2.050 mm | 2.050 mm |
| Plate thickness (max.) | 5 mm | 5,5 mm | 4 mm | 4,5 mm | 5,5 mm | 3,5 mm | 4,5 mm | 4 mm | 4,5 mm |
| Max. plate thickness for bending | 4 mm | 5 mm | 3,5 mm | 4 mm | 5 mm | 3 mm | 4 mm | 3 mm | 4 mm |
| Bending diameter (min.) | 150 mm | 190 mm | 150 mm | 175 mm | 210 mm | 150 mm | 190 mm | 190 mm | 210 mm |
| Roll diameter | 110 mm | 130 mm | 110 mm | 120 mm | 140 mm | 110 mm | 130 mm | 130 mm | 140 mm |
| Drive capacity | |||||||||
| Motor rating main drive | 2,2 kW | ||||||||

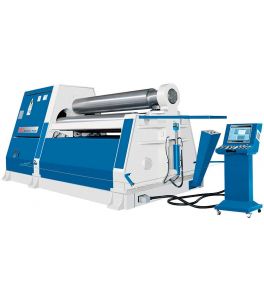

4 Rolls Hydraulic Plate Rolling Machines RBM
Details
Overview Specs
Technical Data
| RBM 20/06 | RBM 20/20 | RBM 25/08 | RBM 25/16 | RBM 25/25 | RBM 25/45 | RBM 30/13 | RBM 30/20 | RBM 30/50 | RBM 40/08 | RBM 40/16 | |
| Working area | |||||||||||
| Working length | 2.100 mm | 2.100 mm | 2.600 mm | 2.600 mm | 2.600 mm | 2.600 mm | 3.100 mm | 3.100 mm | 3.100 mm | 4.100 mm | 4.100 mm |
| Plate thickness (max.) | 6 mm | 20 mm | 8 mm | 16 mm | 25 mm | 45 mm | 13 mm | 20 mm | 50 mm | 8 mm | 16 mm |
| Max. plate thickness for bending | 4 mm | 16 mm | 6 mm | 13 mm | 20 mm | 35 mm | 10 mm | 16 mm | 40 mm | 6 mm | 13 mm |
| Upper roll diameter | 160 mm | 300 mm | 210 mm | 300 mm | 360 mm | 460 mm | 300 mm | 360 mm | 540 mm | 300 mm | 390 mm |
| Lower roll diameter | 140 mm | 270 mm | 190 mm | 270 mm | 330 mm | 420 mm | 270 mm | 330 mm | 510 mm | 270 mm | 360 mm |
| Side roll diameter | 120 mm | 210 mm | 170 mm | 210 mm | 250 mm | 360 mm | 210 mm | 250 mm | 440 mm | 210 mm | 300 mm |
| Drive capacity | |||||||||||
| Motor rating hydraulic pump | 2,2 kW | 15 kW | 7,5 kW | 11 kW | 18,5 kW | ||||||
4 Rolls Hydraulic Plate Rolling Machines RBM NC
Details
Overview Specs
Technical Data
| RBM 20/06 NC Teach In | RBM 20/20 NC Teach In | RBM 25/08 NC Teach In | RBM 25/16 NC Teach In | RBM 25/25 NC Teach In | RBM 25/45 NC Teach In | RBM 30/13 NC Teach In | RBM 30/20 NC Teach In | RBM 30/50 NC Teach In | RBM 40/08 NC Teach In | RBM 40/16 NC Teach In | |
| Working area | |||||||||||
| Working length | 2.100 mm | 2.100 mm | 2.600 mm | 2.600 mm | 2.600 mm | 2.600 mm | 3.100 mm | 3.100 mm | 3.100 mm | 4.100 mm | 4.100 mm |
| Plate thickness (max.) | 6 mm | 20 mm | 8 mm | 16 mm | 25 mm | 45 mm | 13 mm | 20 mm | 50 mm | 8 mm | 16 mm |
| Max. plate thickness for bending | 4 mm | 16 mm | 6 mm | 13 mm | 20 mm | 35 mm | 10 mm | 16 mm | 40 mm | 6 mm | 13 mm |
| Upper roll diameter | 160 mm | 300 mm | 210 mm | 300 mm | 360 mm | 460 mm | 300 mm | 360 mm | 540 mm | 300 mm | 390 mm |
| Lower roll diameter | 140 mm | 270 mm | 190 mm | 270 mm | 330 mm | 420 mm | 270 mm | 330 mm | 510 mm | 270 mm | 360 mm |
| Side roll diameter | 120 mm | 210 mm | 170 mm | 210 mm | 250 mm | 360 mm | 210 mm | 250 mm | 440 mm | 210 mm | 300 mm |
| Drive capacity | |||||||||||
| Motor rating hydraulic pump | 2,2 kW | 15 kW | 7,5 kW | 11 kW | 18,5 kW | ||||||

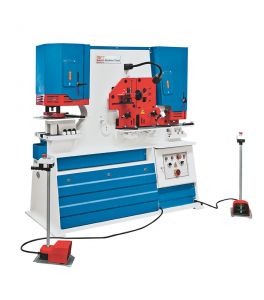

Ironworkers HPS H
Details
Overview Specs
Technical Data
| HPS 45 H | HPS 60 H | HPS 65 H | HPS 85 H | HPS 115 H | HPS 175 H | |
| Working area | ||||||
| Number of hydraulic cylinders | 1 Pieces | 1 Pieces | 2 Pieces | 2 Pieces | 2 Pieces | 2 Pieces |
| Punch press | ||||||
| Pressure force | 45 t | 60 t | 65 t | 85 t | 115 t | 175 t |
| Punch capacity (max.) | 22×15 mm | 28×15 mm | 26×20 mm | 33×20 mm | 34×26 mm | 40×32 mm |
| Diameter x thickness | 38×8 mm | 38×11 mm | 57×10 mm | 57×12 mm | 55×16 mm | 57×22 mm |
| Throat | 190 mm | 225 mm | 305 mm | 355 mm | 405 mm | 625 mm |
| Stroke | 35 mm | 50 mm | 55 mm | 80 mm | 80 mm | 80 mm |
| Stroke number (at 20 mm stroke) | 20 H/min | 25 H/min | 25 H/min | 25 H/min | 25 H/min | 22 H/min |
| Working height | 935 mm | 935 mm | 1.005 mm | 1.070 mm | 1.070 mm | 1.130 mm |

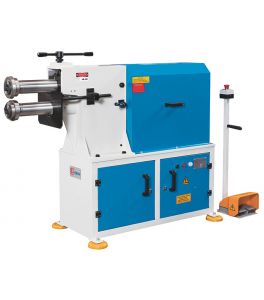

Beading Machines KSM
Details
Overview Specs
Technical Data
| KSM 12 | KSM 25 | |
| Working area | ||
| Plate thickness (max.) | 1,2 mm | 2,5 mm |
| Roller distance max. | 56 mm | 92 mm |
| Throat | 200 mm | 280 mm |
| Speed | 32 1/min | 20 1/min |
| Drive capacity | ||
| Motor rating | 0,75 kW | 1,5 kW |
| Measures and weights | ||
| Overall dimensions (length x width x height) | 1,1×0,48×1,48 m | 1,47×0,58×135 m |
| Weight | 120 kg | 235 kg |

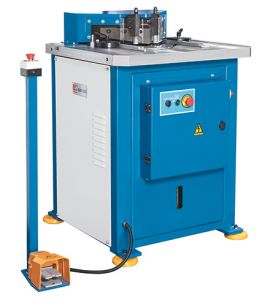

Notching Machines KAM 250
Details
Overview Specs
Technical Data
Working area
Cutting angle 90 deg
Max cut length 250 mm
Max cut thickness 6,5 mm
Strokes per minute 24 Pieces
Table size 810×750 mm
Motor rating 4 kW
Operating pressure 120 bar
Measures and weights
Oil tank capacity 35 l
Overall dimensions (length x width x height) 1,01×0,85×1,4 m
Weight 630 kg
Part No. 130610
Beading Machines KSM 40
Details
Overview Specs
Technical Data
Working area
Plate thickness (max.) 4 mm
Roller distance max. 132 mm
Throat 300 mm
Speed 15 1/min
Drive capacity
Motor rating 2,2 kW
Measures and weights
Overall dimensions (length x width x height) 1,65×0,58×1,4 m
Weight 341 kg
Part No. 130021

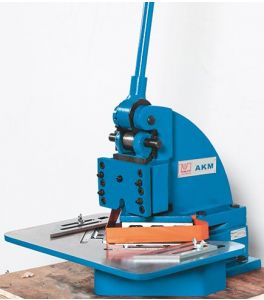

Notching Machines AKM
Details
Overview Specs
Technical Data
Working area
Pressure force 4 t
Plate thickness (max.) 1,6 mm
Punching 152×152 mm
Stroke 20 mm
Angle 90° 152×152 mm
Measures and weights
Overall dimensions (length x width x height) 0,64×0,54×0,57 m
Weight 95 kg
Part No. 130602

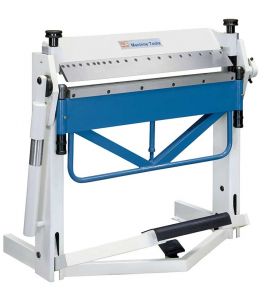

Manual Folding Machines SBS 1020 • 1270
Details
Overview Specs
Technical Data
| SBS 1020/2,5 | SBS 1270/200 | |
| Working area | ||
| Working length | 1.020 mm | 1.270 mm |
| Plate thickness (max.) | 2,5 mm | 2 mm |
| Bending bar angle (range) | 135° | |
| Measures and weights | ||
| Overall dimensions (length x width x height) | 1,35×0,85×1,18 m | 1,6×0,9×1,18 m |
| Weight | 285 kg | 330 kg |

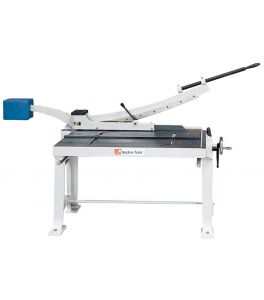

Manual Guillotine Shears KHS E 1000
Details
Overview Specs
Technical Data
Working area
Plate thickness (max.) 1,5 mm
Working length 1.040 mm
Rear stop 0 – 580 mm
Table dimensions 605×1.100 mm
Measures and weights
Overall dimensions (length x width x height) 1,3x1x1,5 m
Weight 460 kg
Part No. 132036

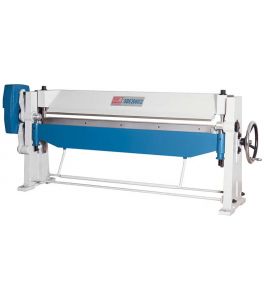

Manual Folding Machines SB E 2060/2
Details
Overview Specs
Technical Data
Working area
Working length 2.060 mm
Plate thickness (max.) 2 mm
Bending bar angle (range) 135°
Top beam travel 210 mm
Adj. lower bending beam 100 mm
Measures and weights
Overall dimensions (length x width x height) 2,9×0,65×1,74 m
Weight 1.750 kg
Part No. 131336

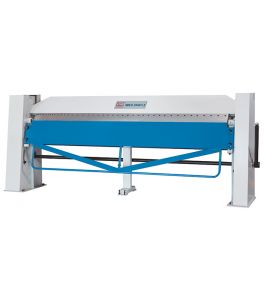

Manual Folding Machines SBS E
Details
Overview Specs
Technical Data
| SBS E 2020/2,0 | SBS E 2540/1,5 | SBS E 3020/1,2 | |
| Working area | |||
| Working length | 2.020 mm | 2.540 mm | 3.020 mm |
| Plate thickness (max.) | 2 mm | 1,5 mm | 1,2 mm |
| Working height | 920 mm | ||
| Male Die | |||
| Stroke | 120 mm | ||
| Bending Die | |||
| Bending angle (max.) | 135 deg | ||
| Adjustment range for A axis | 15 mm | ||
| Measures and weights | |||
| Overall dimensions (length x width x height) | 2,8×0,85×1,3 m | 3,32×0,72×1,5 m | 3,8×0,72×1,5 m |
| Weight | 1.025 kg | 1.250 kg | 1.385 kg |

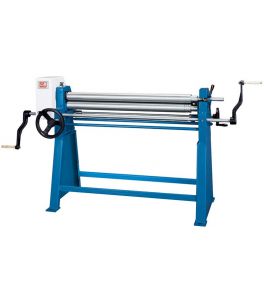

3 Rolls Manual Plate Rolling Machines KR
Details
Overview Specs
Technical Data
| KR 10/1.0 | KR 10/1.5 | KR 10/3.0 | KR 12/1.5 | KR 15/2.0 | KR 20/1.5 | |
| Working area | ||||||
| Working length | 1.050 mm | 1.050 mm | 1.050 mm | 1.250 mm | 1.550 mm | 2.050 mm |
| Plate thickness (max.) | 1 mm | 1,5 mm | 3 mm | 1,5 mm | 2,2 mm | 1,8 mm |
| Roll diameter | 56 mm | 70 mm | 90 mm | 75 mm | 90 mm | 95 mm |
| Measures and weights | ||||||
| Overall dimensions (length x width x height) | 1,3×0,7×1,1 m | 1,3×0,7×1,1 m | 2,1×0,8×1,13 m | 2×0,8×1,12 m | 2,6×0,8×1,1 m | 3,03×0,8×1,13 m |
| Weight | 240 kg | 320 kg | 500 kg | 510 kg | 570 kg | 635 kg |
