Grinding

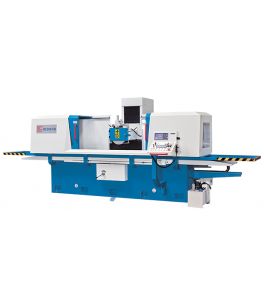

Conventional Surface Grinders HFS F NC

Click for more details.

Overview Specs

Technical Data

HFS 50100 F NC HFS 50160 F NC HFS 60160 F NC HFS 60200 F NC HFS 80160 F NC HFS 80220 F NC HFS 80300 F NC
Working area
Table dimensions 500×1.000 mm 500×1.600 mm 600×1.600 mm 600×2.200 mm 800×1.600 mm 800×2.200 mm 800×3.000 mm
Spindle center-to-table distance 600 mm 600 mm 600 mm 600 mm 920 mm 900 mm 900 mm
Table load capacity (max.) 700 kg 900 kg 1.300 kg 1.690 kg 2.000 kg 2.400 kg 3.500 kg
Magnetic chuck height 110 mm
Travels
Travel X-axis 1.000 mm 1.600 mm 1.600 mm 2.200 mm 1.600 mm 2.200 mm 3.000 mm
Travel Y-axis 500 mm 500 mm 630 mm 630 mm 810 mm 810 mm 810 mm
Feed
Hydr. feed X-axis 5 – 25 m/min
Feed Y-axis 50 – 500 mm/min 50 – 500 mm/min 50 – 500 mm/min 50 – 500 mm/min 50 – 2.000 mm/min 50 – 2.000 mm/min 50 – 2.000 mm/min
Feed depth, Y-axis 0,005 – 0,05 mm
Feed Z-axis 50 – 600 mm/min 50 – 600 mm/min 50 – 600 mm/min 50 – 600 mm/min 50 – 2.000 mm/min 50 – 2.000 mm/min 50 – 2.000 mm/min
Automatic Z-axis feed 0 – 30 mm/min

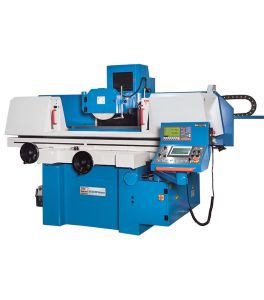

Conventional Surface Grinders HFS F Advance

Click for more details.

Overview Specs

Technical Data

HFS 2550 F Advance HFS 3063 F Advance HFS 4080 F Advance HFS 30100 F Advance HFS 40100 F Advance
Working area
Workpiece weight (max.) 180 kg 270 kg 500 kg 400 kg 600 kg
Spindle nose-to-table surface distance 450 mm 580 mm 580 mm 580 mm 580 mm
Table dimensions 508×254 mm 635×305 mm 813×406 mm 1.020×300 mm 1.020×406 mm
Dimensions magnetic clamping plate 500×250 mm 600×300 mm 800×400 mm 1.000×300 mm 1.000×400 mm
Scale ring division Y-axis 0,005 mm
Scale ring division Z-axis 0,02 mm
Autom. transverse feed Z-axis 0,1 – 8 mm
Speed 2.850 1/min 1.450 1/min 1.450 1/min 1.450 1/min 1.450 1/min
Autom. vertical feed 0,005 – 0,05 mm
Travels
Travel X-axis 560 mm 765 mm 910 mm 1.130 mm 1.130 mm
Travel Y-axis 275 mm 340 mm 450 mm 340 mm 450 mm

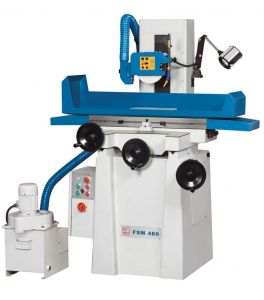

Conventional Surface Grinders FSM 480

Click for more details.

Overview Specs

Technical Data

Working area

Table dimensions       210×450 mm

Spindle axis-to-table surface distance 450 mm

Travels

Travel X-axis  480 mm

Travel Y-axis  230 mm

Travel distance per hand-wheel rotation, X-axis       5 mm

Travel distance per hand-wheel rotation, Y-axis       5 mm

Travel distance per hand-wheel rotation, Z-axis        1 mm

Feed

Scale ring division X-axis      0,02 mm

Scale ring division Y-axis      0,02 mm

Scale ring division Z-axis       0,005 mm

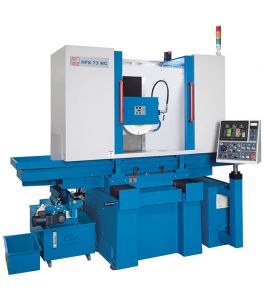

Conventional Surface Grinders HFS NC

Click for more details.

Overview Specs

Technical Data

HFS 73 NC HFS 52 NC HFS 104 NC HFS 160 NC
Working area
Grinding area (max.) 720×300 mm 520×200 mm 1.020×400 mm 1.700×400 mm
Workpiece weights incl. magnetic clamping plate (max.) 400 kg 210 kg 680 kg 850 kg
Spindle axis-to-table surface distance 640 mm 470 mm 640 mm 640 mm
Dimensions magnetic clamping plate 700×300 mm 500×200 mm 1.000×400 mm 1.600×400 mm
T-slots, width 14 mm
Number of T-slots 1 Pieces 1 Pieces 3 Pieces 3 Pieces
Division (electronic hand-wheel) Y-axis 0,001 / 0,005 / 0,01 mm
Division (electronic hand-wheel) Z-axis 0,01 / 0,05 / 0,1 mm
Travels
Travel X-axis 800 mm 560 mm 1.120 mm 1.780 mm
Travel Z-axis 330 mm 230 mm 430 mm 430 mm
Headstock
Spindle speed 500 – 2.300 1/min 500 – 3.500 1/min 500 – 2.300 1/min 500 – 2.300 1/min
Rapid feed
Rapid feed Y-/Z-axis (10) 0 – 1.200 mm/min

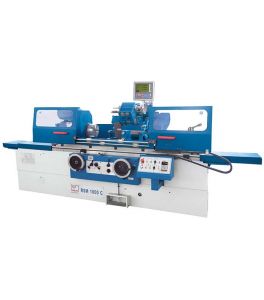

Conventional Cylindrical Grinders RSM C

Click for more details.

Overview Specs

Technical Data

RSM 1000 C RSM 1500 C RSM 750 C RSM 2000 C
Working area
Center height 180 mm 180 mm 135 mm 180 mm
Grinding diameter 8 – 320 mm 8 – 320 mm 8 – 200 mm 15 – 320 mm
With steady rest 60 mm 60 mm 8 – 60 mm 150 mm
Grinding length 1.000 mm 1.500 mm 750 mm 2.000 mm
Inside grinding diameter with rest 35 – 100 mm
Inside grinding diameter without rest 30 – 100 mm 30 – 100 mm 25 – 100 mm 30 – 100 mm
Inside grinding depth 125 mm
Workpiece weight between centers (max.) 150 kg 150 kg 80 kg 150 kg
Grinding wheel feed (min.) 0,0025 mm
Chuck diameter 200 mm
Table swivel range (max.) -3° / +7° -3° / +6° -2° / +6° -3° / +5°
Wheel speeds 35 m/s 35 m/s 35 m/s 34,2 m/s
Work spindle speeds 50 Hz: 25-220 1/min 50 Hz: 25-220 1/min 50 Hz: 25-380 1/min 50 Hz: 25-220 1/min
Travels
Grinding head travel 250 mm 250 mm 200 mm 250 mm

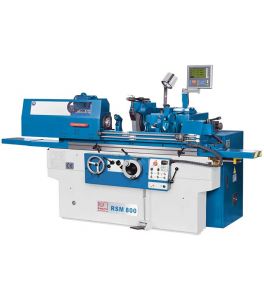

Conventional Cylindrical Grinders RSM A

Click for more details.

Overview Specs

Technical Data

RSM 500 A     RSM 800

Working area

Center height  135 mm

Workpiece length (max.)        650 mm           950 mm

Grinding length          500 mm           800 mm

Grinding diameter      8 – 200 mm

Inside grinding diameter without rest 10 – 100 mm   13 – 100 mm

Workpiece weight between centers (max.)    50 kg

Inside grinding depth  125 mm

Table swivel range (max.)      -3° / +9° R / L -3° / +8° R / L

Wheel speeds  38 m/s

Feed

Table feed, infinitely variable 0,1 – 4 m/min

Feed per scale division X-axis           0,005 mm

Headstock

Work spindle speeds   25 – 220 1/min

Working headstock swivel range       0-45°

Spindle taper   MT 4

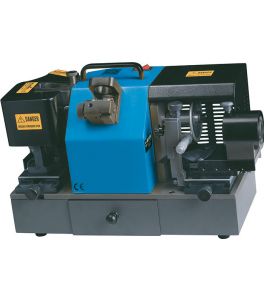

Tool Grinders FSM 14 S

Click for more details.

Overview Specs

Technical Data

Working area

Grinding diameter      4 – 14 mm

Grinding wheel material        CBN

Drive capacity

Motor rating main drive         0,16 kW

Supply voltage            220 V

Measures and weights

Overall dimensions (length x width x height)            0,61×0,25×0,3 m

Weight 22 kg

Part No.           112805

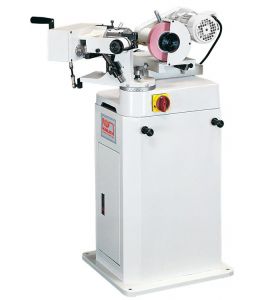

Tool Grinders BFT

Click for more details.

Overview Specs

Technical Data

Working area

Grinding diameter      1,5 – 26 mm

Speed  4.200 1/min

Angle adjustment       40 – 100°

Morse taper     MT 2 – 3

Drive capacity

Motor rating main drive         0,18 kW

Measures and weights

Overall dimensions (length x width x height)            0,75×0,83×1,07 m

Weight 180 kg

Part No.           122968

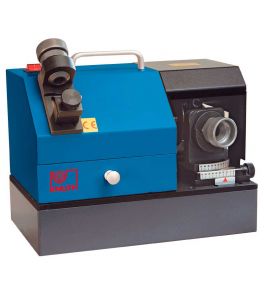

Tool Grinders GSM 20

Click for more details.

Overview Specs

Technical Data

Working area

Grinding area  M5 – M20

Point angle      5 – 30 deg

Speed  5.300 1/min

Drive capacity

Motor rating main drive         0,18 kW

Supply voltage            220 V

Measures and weights

Overall dimensions (length x width x height)            0,35×0,23×0,27 m

Weight 12 kg

Part No.           112810

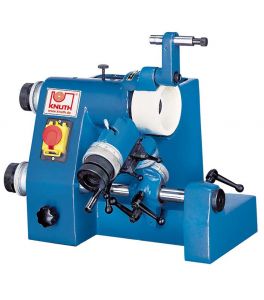

Tool Grinders SM

Click for more details.

Overview Specs

Technical Data

Working area

Grinding diameter      25 mm

Speed  5.200 1/min

Collet chuck diameter 18 mm

Taper grinding 0° ~ 180°

Rear angle       0 ~ 45 deg

Hand-wheel rotation, spindle 8 mm

Hand-wheel rotation, tool holder       18 mm

Travels

Travel tool holder       140 mm

Drive capacity

Motor rating main drive         0,18 kW

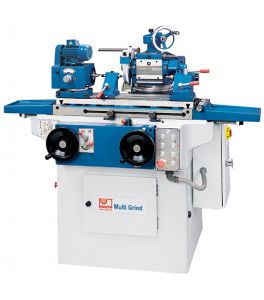

Tool Grinders Multi-Grind

Click for more details.

Overview Specs

Technical Data

Working area

Grinding diameter      200 mm

Workpiece length (max.)        500 mm

Outside grinding measure, maximum Ø 5-50 x 400 mm

Inside grinding measures, optimal     Ø 10-50 x 75 mm

Tool grinding measure           200×500 mm

Workpiece length surface grinding    200 mm

Workpiece width surface grinding     50 mm

Workpiece weight (max.)       10 kg

Table swivel range (max.)      +45° / -30°

Travels

Travel Z-axis  480 mm

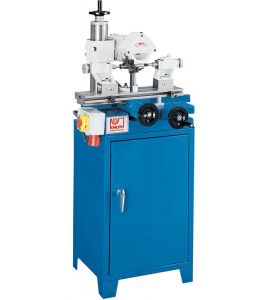

Tool Grinders KSW 200

Click for more details.

Overview Specs

Technical Data

Working area

Grinding diameter      125 mm

Grinding length          320 mm

Table travel, X-axis    150 mm

Table travel, Z-axis    300 mm

Spindle axis-to-table surface distance 115 mm

Speed  2.800 1/min

Head swivel range      ± 40°

Drive capacity

Motor rating main drive         0,18 kW

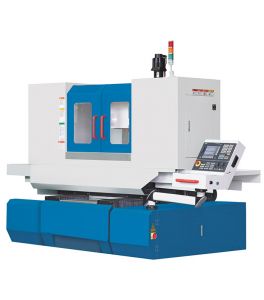

CNC Flachschleifmaschinen FS 4080 M CNC

Click for more details.

Overview Specs

Technical Data

Working area

Workpiece weight (max.)       450 kg

Spindle nose-to-table surface distance           620 mm

Table dimensions       400×800 mm

T-slots, width  14 mm

Number of T-slots      3 Pieces

Division (electronic hand-wheel) Y-axis       0,001 mm/min

Travels

Travel X-axis  930 mm

Travel Y-axis  430 mm

Headstock

Spindle speed  50 – 2.300 1/min

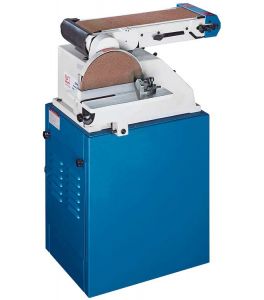

Belt/Disk Sanders BTM 250

Click for more details.

Overview Specs

Technical Data

Working area

Belt speed       8,4 m/s

Speed  1.600 1/min

Table area, belt-grinding        152×267 mm

Table area, disc-grinding       190×330 mm

Angular adj. of table   45°

Drive capacity

Motor rating main drive         1,1 kW

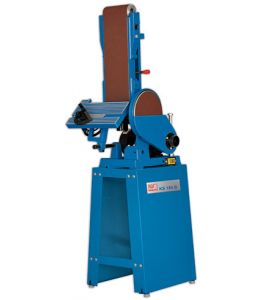

Belt/Disk Sanders KS 150 B Belt / Grinding Wheel Sander Combination

Click for more details.

Overview Specs

Technical Data

Working area

Angular adj. of table        45°

Belt speed           5,5 m/s

Belt sander with adjustable angle             90°

Sanding pad diameter     230 mm

Speed (disc)        23,3 m/s

Drive capacity

Motor rating main drive 0,75 kW

Supply voltage   230 V

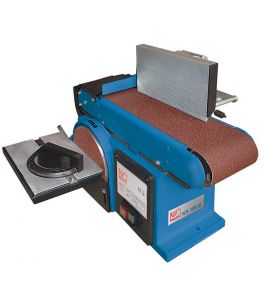

Belt/Disk Sanders KS 100 B Belt / Grinding Wheel Sander Combination

Click for more details.

Overview Specs

Technical Data

Working area

Table dimensions             158×225 mm

Belt speed           8 m/s

Angular adj. of table        45°

Belt sander with adjustable angle             0-90°

Drive capacity

Motor rating main drive 0,4 kW

Supply voltage   230 V

Measures and weights

Sanding pad diameter     150 mm

Blade dimensions             100×915 mm

Overall dimensions (length x width x height)         0,56×0,27×0,3 m

Weight  17 kg

Part No.               102815
