Technical Data

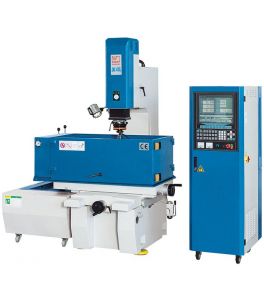

	ZNC-EDM 250	ZNC 435 L	ZNC 760 L
Working area
Table dimensions	450×280 mm	700×450 mm	700×1.200 mm
Electrode holder-to-table distance	200 – 400 mm	250 – 600 mm	300 – 870 mm
Workpiece weight (max.)	200 kg	700 kg	2.000 kg
Quill stroke	200 mm	250 mm	300 mm
Electrode weight (max.)	30 kg
Travels
Travel X-axis	250 mm	450 mm	700 mm
Travel Y-axis	200 mm	350 mm	600 mm
Generator
Generator power consumption	3,5 kVA	7,5 kVA	9 kVA
Removal rate (max.)	400 mm³/min	500 mm³/min	800 mm³/min
Electrode wear, min.	≤ 0,2 %
Mean generator capacity	40 A	80 A	100 A
Generator weight	– kg	200 kg	200 kg

Overview Specs

Technical Data

Working area

Table dimensions 820×535 mm

Workpiece, length x width x thickness (max.) 1.190x650x400 mm

Workpiece weight (max.) 800 kg

X-axis travel 600 mm

Y axis travel 400 mm

Travel U / V-axis 70 / 70 mm

Z-axis travel 350 mm

Cutting angle (with guide) ± 10° / 80 mm

Cutting capacity (max.) 200 mm³/min

Generator 10 A

CNC control

Display size / type 15″ / LED

Controlled axis 4

Input increment (min.) 0,001 mm

Overview Specs

Technical Data

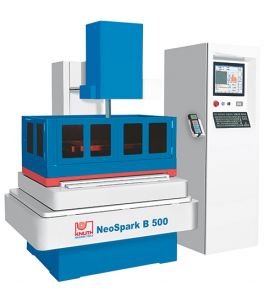

	NeoSpark B 300	NeoSpark B 500
Working area
Table dimensions	620×440 mm	820×535 mm
Workpiece, length x width x thickness (max.)	960x550x300 mm	1.190x650x400 mm
Workpiece weight (max.)	500 kg	800 kg
X-axis travel	400 mm	600 mm
Y axis travel	300 mm	400 mm
Travel U / V-axis	70 / 70 mm
Z-axis travel	250 mm	350 mm
Cutting angle (with guide)	± 10° / 80 mm
Cutting capacity (max.)	300 mm²/min
Generator	10 A
CNC control
Display size / type	15″ / LED
Controlled axis	4
Input increment (min.)	0,001 mm
