Horizontal Machining Center
H3XP
Details
Overview Specs
| SPECIFICATION | H3XP | ||
| TRAVEL | |||
| X axis | mm / inch | 350 / 13.8 | |
| Y axis | mm / inch | 400 / 15.7 | |
| Z axis | mm / inch | 350 / 13.8 | |
| C axis rotation | degree | – | |
| B axis swing | degree | – | |
| Spindle Nose To Table Surface | mm / inch | 50~400 / 1.97~15.75 | |
| TABLE | |||
| Number of Pallet | 2 /6 (OPT) | ||
| Table Size (L*W) | mm / inch | 320×320 / 12.6 x 12.6 | |
| Max. Loading | kgs/lbs | 300 / 661 | |
| Pallet Change Time | sec | 8 | |
| Indexing | degree | 0.001° | |

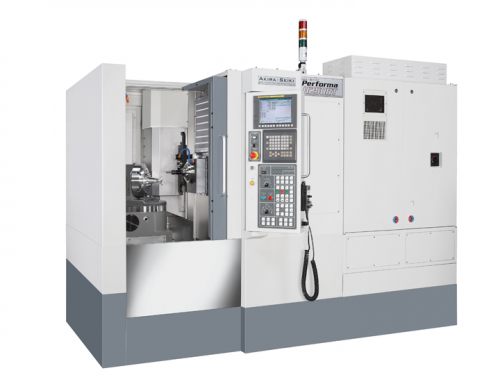

H250RT
Details
Overview Specs
| SPECIFICATION | H250RT | ||||
| TRAVEL | |||||
| X axis | mm / inch | 400 / 15 | |||
| Y axis | mm / inch | 400 / 15.7 | |||
| Z axis | mm / inch | 350 / 13.8 | |||
| C axis rotation | degree | 360° | |||
| B axis swing | degree | -30°~ +120° | |||
| Spindle Nose To Table Surface | mm / inch | 150~500 | |||
| TABLE | |||||
| Number of Pallet | – | ||||
| Table Size (L*W) | mm / inch | ∅250 | |||
| Max. Loading | kgs/lbs | 100 /132 | |||
| Pallet Change Time | sec | – | |||
| Indexing | degree | 0.001 | |||
Details
Overview Specs
| SPECIFICATION | H5XP | ||
| TRAVEL | |||
| X axis | mm / inch | 720 / 28.3 | |
| Y axis | mm / inch | 720 / 28.3 | |
| Z axis | mm / inch | 720 / 28.3 | |
| Spindle Centerto Pallet Surface | mm / inch | 50~770/2~30.3 | |
| TABLE | |||
| Number of Pallet | 2 | ||
| Table Size (L*W) | mm / inch | 500×500 /20×20 | |
| Max. Loading | kgs/Ibs | 500/1323 | |
| Pallet Change Time | sec | 12 | |
| B Axis Indexing | degree | 1° | |

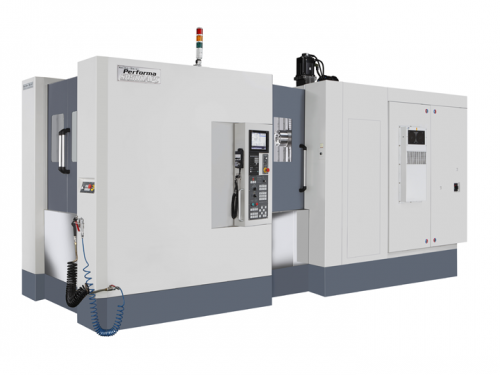

SH500APC
Details
Overview Specs
| SPECIFICATION | SH500APC | |||||
| TRAVEL | ||||||
| X axis | mm / inch | 720 / 28.3 | ||||
| Y axis | mm / inch | 720 / 28.3 | ||||
| Z axis | mm / inch | 720 / 28.3 | ||||
| Spindle Centerto Pallet Surface | mm / inch | 50~770/2~30.3 | ||||
| TABLE | ||||||
| Number of Pallet | 2 | |||||
| Table Size (L*W) | mm / inch | 500×500 / 20×20 | ||||
| Max. Loading | kgs/Ibs | 600/ 1323 | ||||
| Pallet Change Time | sec | 8 | ||||
| B Axis Indexing | degree | 0.001° | ||||
