JR/SR
JR
Details
Overview Specs
| JR | SR2 | SR3 | ||
| CONTROL SYSTEM | AKIRA M:845 (Fanuc G code compatible) | |||
| TRAVEL | ||||
| X Axis Travel | mm/inch | 410 / 16.1 | 550 / 21.7 | 762/30 |
| Y Axis Travel | mm/inch | 430/ 16.9 | 430 / 16.9 | 430 / 16.9 |
| Z Axis Travel | mm/inch | 460 / 18.1 | 460 /18.1 | 460/18.1 |
| Spindle Nose to Table Surface | mm/inch | 75~535/ 3-21 | 75~535 /3~21 | 75~535/3~21 |
| Spindle Center to Column Cover | mm/inch | 435/17 | 435/17 | 435/17 |
| TABLE | ||||
| Table Size (L x W) | mm/inch | 560 x 380 / 22 x 15 |
700 x 380 / 28 x 15 |
910 x 380 / 36 x 15 |
| T Slot | mm/inch | 16 x 80 x 4 slots / 0.63 x 3.15 x 4 slots |
16 x 80 x 4 slots/ 0.63 x 3.15 x 4 slots |
16 x 80 x 4 slots/ 0.63 x 3.15 x 4 slots |
| Max. Loading | kgs/lbs | 432/952 | 576 /1270 | 792/ 1746 |
| Standard Loading | kgs/lbs | 360/794 | 480 /1058 | 660/1455 |
| SPINDLE | ||||
| Max. Motor Power (Peak) | HP | 12 | 15 | 15 |
| Max. Speed | rpm | 9,000 | 9,000 | 9,000 |
| Spindle Taper | ISO 40 | BT40 | BT40 | BT40 |
| FEED | ||||
| Rapid Feed X/Y/Z | M/min rpm | 30 /30 / 24 1181 / 1181 /945 |
30 / 30 / 24 1181 /1181 /945 |
30 / 30 / 24 1181 /1181 /945 |
| Cutting Feed X/Y/Z | M/min rpm | 10 /10 /10 394/394 /394 |
10/10/10 394/394/394 |
10/10/10 394/394/394 |
| ACCURACY | ||||
| Positioning | mm/inch | 0.01 / 0.00039 | 0.01 /0.00039 | 0.01 /0.00039 |
| Repeatability | mm/inch | ±0.003/±0.00012 | ±0.003 / ±0.00012 | ±0.003 / ±0.00012 |
| ATC | ||||
| Tool Storage Arm ATC | – | 16T | 20T | 20T |
| Max. Tool Diameter | mm/inch | 75/3 | 75/3 | 75/3 |
| Max. Tool Diameter (Without Neighbor Tool) |
mm/inch | 150 / 5.9 | 150 /5.9 | 150 /5.9 |
| Max. Tool Length | mm/inch | 250 / 9.8 | 250 /9.8 | 250 /9.8 |
| Max. Tool Weight | kgs/lbs | 7/15 | 7/15 | 7/15 |
| Tool to Tool Time (60hz) | sec. | 2.2 | 2.2 | 2.2 |
| GENERAL | ||||
| Tank Capacity | liter/gal | 150 / 39.6 | 150 / 39.6 | 150 / 39.6 |
| Chip Disposal | – | Drawer | Drawer | Drawer |
| Air Pressure Requirement | Mpa/psi | 0.5/72.5 | 0.5/72.5 | 0.5/72.5 |
| Power Requirement | KVA | 20 | 20 | 20 |
| Floor Space | mm/inch | 1900 x 1935 / 75x 76 |
1900 x 1935 / 75x 76 |
2100 x 1935 / 83x 76 |
| Weight | kgs/lbs | 2850 /6283 | 3250/7165 | 3480 /7672 |
Details
Overview Specs
| JR | SR2 | SR3 | ||
| CONTROL SYSTEM | AKIRA M:845 (Fanuc G code compatible) | |||
| TRAVEL | ||||
| X Axis Travel | mm/inch | 410 / 16.1 | 550 / 21.7 | 762/30 |
| Y Axis Travel | mm/inch | 430/ 16.9 | 430 / 16.9 | 430 / 16.9 |
| Z Axis Travel | mm/inch | 460 / 18.1 | 460 /18.1 | 460/18.1 |
| Spindle Nose to Table Surface | mm/inch | 75~535/ 3-21 | 75~535 /3~21 | 75~535/3~21 |
| Spindle Center to Column Cover | mm/inch | 435/17 | 435/17 | 435/17 |
| TABLE | ||||
| Table Size (L x W) | mm/inch | 560 x 380 / 22 x 15 |
700 x 380 / 28 x 15 |
910 x 380 / 36 x 15 |
| T Slot | mm/inch | 16 x 80 x 4 slots / 0.63 x 3.15 x 4 slots |
16 x 80 x 4 slots/ 0.63 x 3.15 x 4 slots |
16 x 80 x 4 slots/ 0.63 x 3.15 x 4 slots |
| Max. Loading | kgs/lbs | 432/952 | 576 /1270 | 792/ 1746 |
| Standard Loading | kgs/lbs | 360/794 | 480 /1058 | 660/1455 |
| SPINDLE | ||||
| Max. Motor Power (Peak) | HP | 12 | 15 | 15 |
| Max. Speed | rpm | 9,000 | 9,000 | 9,000 |
| Spindle Taper | ISO 40 | BT40 | BT40 | BT40 |
| FEED | ||||
| Rapid Feed X/Y/Z | M/min rpm | 30 /30 / 24 1181 / 1181 /945 |
30 / 30 / 24 1181 /1181 /945 |
30 / 30 / 24 1181 /1181 /945 |
| Cutting Feed X/Y/Z | M/min rpm | 10 /10 /10 394/394 /394 |
10/10/10 394/394/394 |
10/10/10 394/394/394 |
| ACCURACY | ||||
| Positioning | mm/inch | 0.01 / 0.00039 | 0.01 /0.00039 | 0.01 /0.00039 |
| Repeatability | mm/inch | ±0.003/±0.00012 | ±0.003 / ±0.00012 | ±0.003 / ±0.00012 |
| ATC | ||||
| Tool Storage Arm ATC | – | 16T | 20T | 20T |
| Max. Tool Diameter | mm/inch | 75/3 | 75/3 | 75/3 |
| Max. Tool Diameter (Without Neighbor Tool) |
mm/inch | 150 / 5.9 | 150 /5.9 | 150 /5.9 |
| Max. Tool Length | mm/inch | 250 / 9.8 | 250 /9.8 | 250 /9.8 |
| Max. Tool Weight | kgs/lbs | 7/15 | 7/15 | 7/15 |
| Tool to Tool Time (60hz) | sec. | 2.2 | 2.2 | 2.2 |
| GENERAL | ||||
| Tank Capacity | liter/gal | 150 / 39.6 | 150 / 39.6 | 150 / 39.6 |
| Chip Disposal | – | Drawer | Drawer | Drawer |
| Air Pressure Requirement | Mpa/psi | 0.5/72.5 | 0.5/72.5 | 0.5/72.5 |
| Power Requirement | KVA | 20 | 20 | 20 |
| Floor Space | mm/inch | 1900 x 1935 / 75x 76 |
1900 x 1935 / 75x 76 |
2100 x 1935 / 83x 76 |
| Weight | kgs/lbs | 2850 /6283 | 3250/7165 | 3480 /7672 |
Details
Overview Specs
| JR | SR2 | SR3 | ||
| CONTROL SYSTEM | AKIRA M:845 (Fanuc G code compatible) | |||
| TRAVEL | ||||
| X Axis Travel | mm/inch | 410 / 16.1 | 550 / 21.7 | 762/30 |
| Y Axis Travel | mm/inch | 430/ 16.9 | 430 / 16.9 | 430 / 16.9 |
| Z Axis Travel | mm/inch | 460 / 18.1 | 460 /18.1 | 460/18.1 |
| Spindle Nose to Table Surface | mm/inch | 75~535/ 3-21 | 75~535 /3~21 | 75~535/3~21 |
| Spindle Center to Column Cover | mm/inch | 435/17 | 435/17 | 435/17 |
| TABLE | ||||
| Table Size (L x W) | mm/inch | 560 x 380 / 22 x 15 |
700 x 380 / 28 x 15 |
910 x 380 / 36 x 15 |
| T Slot | mm/inch | 16 x 80 x 4 slots / 0.63 x 3.15 x 4 slots |
16 x 80 x 4 slots/ 0.63 x 3.15 x 4 slots |
16 x 80 x 4 slots/ 0.63 x 3.15 x 4 slots |
| Max. Loading | kgs/lbs | 432/952 | 576 /1270 | 792/ 1746 |
| Standard Loading | kgs/lbs | 360/794 | 480 /1058 | 660/1455 |
| SPINDLE | ||||
| Max. Motor Power (Peak) | HP | 12 | 15 | 15 |
| Max. Speed | rpm | 9,000 | 9,000 | 9,000 |
| Spindle Taper | ISO 40 | BT40 | BT40 | BT40 |
| FEED | ||||
| Rapid Feed X/Y/Z | M/min rpm | 30 /30 / 24 1181 / 1181 /945 |
30 / 30 / 24 1181 /1181 /945 |
30 / 30 / 24 1181 /1181 /945 |
| Cutting Feed X/Y/Z | M/min rpm | 10 /10 /10 394/394 /394 |
10/10/10 394/394/394 |
10/10/10 394/394/394 |
| ACCURACY | ||||
| Positioning | mm/inch | 0.01 / 0.00039 | 0.01 /0.00039 | 0.01 /0.00039 |
| Repeatability | mm/inch | ±0.003/±0.00012 | ±0.003 / ±0.00012 | ±0.003 / ±0.00012 |
| ATC | ||||
| Tool Storage Arm ATC | – | 16T | 20T | 20T |
| Max. Tool Diameter | mm/inch | 75/3 | 75/3 | 75/3 |
| Max. Tool Diameter (Without Neighbor Tool) |
mm/inch | 150 / 5.9 | 150 /5.9 | 150 /5.9 |
| Max. Tool Length | mm/inch | 250 / 9.8 | 250 /9.8 | 250 /9.8 |
| Max. Tool Weight | kgs/lbs | 7/15 | 7/15 | 7/15 |
| Tool to Tool Time (60hz) | sec. | 2.2 | 2.2 | 2.2 |
| GENERAL | ||||
| Tank Capacity | liter/gal | 150 / 39.6 | 150 / 39.6 | 150 / 39.6 |
| Chip Disposal | – | Drawer | Drawer | Drawer |
| Air Pressure Requirement | Mpa/psi | 0.5/72.5 | 0.5/72.5 | 0.5/72.5 |
| Power Requirement | KVA | 20 | 20 | 20 |
| Floor Space | mm/inch | 1900 x 1935 / 75x 76 |
1900 x 1935 / 75x 76 |
2100 x 1935 / 83x 76 |
| Weight | kgs/lbs | 2850 /6283 | 3250/7165 | 3480 /7672 |

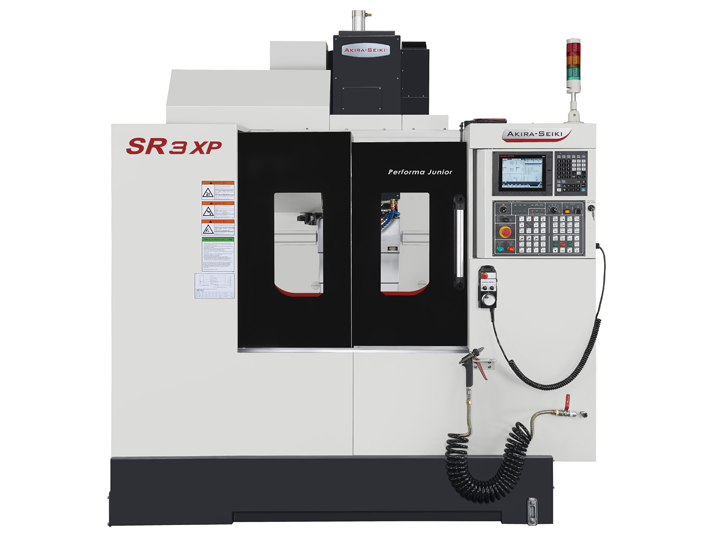

JR XP
Details
Overview Specs
| JR XP | SR2 XP | SR3 XP | ||
| CONTROL SYSTEM | AKIRA M:845 (Fanuc G code compatible) | |||
| TRAVEL | ||||
| X Axis Travel | mm/inch | 410 / 16.1 | 550 / 21.7 | 762 / 30 |
| Y Axis Travel | mm/inch | 430 / 16.9 | 430 / 16.9 | 430 / 16.9 |
| Z Axis Travel | mm/inch | 460 / 18.1 | 460/ 18.1 | 460 / 18.1 |
| Spindle Nose to Table Surface | mm/inch | 75~535/3~21 | 75~535/3~21 | 75~535/3-21 |
| Spindle Center to Column Cover | mm/inch | 435/ 17 | 435/17 | 435 /17 |
| TABLE | ||||
| Table Size (L x W) | mm/inch | 560 x 380 / 22 x 15 |
700 x 380 / 28 x 15 |
910 x 380 / 36 x 15 |
| T Slot | mm/inch | 16 x 80 x 4 slots / 0.63 x 3.15 x 4 slots |
16 x 80 x 4 slots/ 0.63 x 3.15 x 4 slots |
16 x 80 x 4 slots/ 0.63 x 3.15 x 4 slots |
| Max. Loading | kgs/lbs | 432 /953 | 576 /1270 | 792 /1746 |
| Standard Loading | kgs/lbs | 360 /794 | 480/1058 | 660/1455 |
| SPINDLE | ||||
| Max. Motor Power (Peak) | HP | 12 | 15 | 15 |
| Max. Speed | rpm | 11,000 | 11,000 | 11,000 |
| Spindle Taper | ISO 40 | BT40 | BT40 | BT40 |
| FEED | ||||
| Rapid Feed X/Y/Z | M/min ipm | 36 /36 /30 1417/1417 /1181 |
36/36/30 1417/1417 /1181 |
36/36/30 1417/1417 /1181 |
| Cutting Feed X/Y/Z | M/min ipm | 12/12 / 10 472 /472 /394 |
12 /12 /10 472/472 /394 |
12 /12 /10 472/472 /394 |
| ACCURACY | ||||
| Positioning | mm/inch | 0.01 /0.00039 | 0.01/0.00039 | 0.01/0.00039 |
| Repeatability | mm/inch | ±0.003 / ±0.00012 | ±0.003/±0.00012 | ±0.003/±0.00012 |
| ATC | ||||
| Tool Storage Arm ATC | – | 16T | 20T | 20T |
| Max. Tool Diameter | mm/inch | 75/3 | 75/3 | 75/3 |
| Max. Tool Diameter (Without Neighbor Tool) |
mm/inch | 150 /5.9 | 150 /5.9 | 150 /5.9 |
| Max. Tool Length | mm/inch | 250 /9.8 | 250 / 9.8 | 250 / 9.8 |
| Max. Tool Weight | kgs/lbs | 7/15 | 7/15 | 7/15 |
| Tool to Tool Time (60hz) | sec. | 2.2 | 2.2 | 2.2 |
| GENERAL | ||||
| Tank Capacity | liter/gal | 150 / 39.6 | 150 /39.6 | 150 / 39.6 |
| Chip Disposal | – | Chip Screw | Chip Screw | Chip Screw |
| Air Pressure Requirement | Mpa/psi | 0.5/72.5 | 0.5/ 72.5 | 0.5/72.5 |
| Power Requirement | KVA | 20 | 20 | 20 |
| Floor Space | mm/inch | 2400 x 1935 / 94x 76 |
2400 x 1935 / 94 x 76 |
2600 x 1935 / 102 x 76 |
| Weight | kgs/lbs | 3202 / 7059 | 3420/7539 | 3650 / 8046 |
SR2 XP
Details
Overview Specs
| JR XP | SR2 XP | SR3 XP | ||
| CONTROL SYSTEM | AKIRA M:845 (Fanuc G code compatible) | |||
| TRAVEL | ||||
| X Axis Travel | mm/inch | 410 / 16.1 | 550 / 21.7 | 762 / 30 |
| Y Axis Travel | mm/inch | 430 / 16.9 | 430 / 16.9 | 430 / 16.9 |
| Z Axis Travel | mm/inch | 460 / 18.1 | 460/ 18.1 | 460 / 18.1 |
| Spindle Nose to Table Surface | mm/inch | 75~535/3~21 | 75~535/3~21 | 75~535/3-21 |
| Spindle Center to Column Cover | mm/inch | 435/ 17 | 435/17 | 435 /17 |
| TABLE | ||||
| Table Size (L x W) | mm/inch | 560 x 380 / 22 x 15 |
700 x 380 / 28 x 15 |
910 x 380 / 36 x 15 |
| T Slot | mm/inch | 16 x 80 x 4 slots / 0.63 x 3.15 x 4 slots |
16 x 80 x 4 slots/ 0.63 x 3.15 x 4 slots |
16 x 80 x 4 slots/ 0.63 x 3.15 x 4 slots |
| Max. Loading | kgs/lbs | 432 /953 | 576 /1270 | 792 /1746 |
| Standard Loading | kgs/lbs | 360 /794 | 480/1058 | 660/1455 |
| SPINDLE | ||||
| Max. Motor Power (Peak) | HP | 12 | 15 | 15 |
| Max. Speed | rpm | 11,000 | 11,000 | 11,000 |
| Spindle Taper | ISO 40 | BT40 | BT40 | BT40 |
| FEED | ||||
| Rapid Feed X/Y/Z | M/min ipm | 36 /36 /30 1417/1417 /1181 |
36/36/30 1417/1417 /1181 |
36/36/30 1417/1417 /1181 |
| Cutting Feed X/Y/Z | M/min ipm | 12/12 / 10 472 /472 /394 |
12 /12 /10 472/472 /394 |
12 /12 /10 472/472 /394 |
| ACCURACY | ||||
| Positioning | mm/inch | 0.01 /0.00039 | 0.01/0.00039 | 0.01/0.00039 |
| Repeatability | mm/inch | ±0.003 / ±0.00012 | ±0.003/±0.00012 | ±0.003/±0.00012 |
| ATC | ||||
| Tool Storage Arm ATC | – | 16T | 20T | 20T |
| Max. Tool Diameter | mm/inch | 75/3 | 75/3 | 75/3 |
| Max. Tool Diameter (Without Neighbor Tool) |
mm/inch | 150 /5.9 | 150 /5.9 | 150 /5.9 |
| Max. Tool Length | mm/inch | 250 /9.8 | 250 / 9.8 | 250 / 9.8 |
| Max. Tool Weight | kgs/lbs | 7/15 | 7/15 | 7/15 |
| Tool to Tool Time (60hz) | sec. | 2.2 | 2.2 | 2.2 |
| GENERAL | ||||
| Tank Capacity | liter/gal | 150 / 39.6 | 150 /39.6 | 150 / 39.6 |
| Chip Disposal | – | Chip Screw | Chip Screw | Chip Screw |
| Air Pressure Requirement | Mpa/psi | 0.5/72.5 | 0.5/ 72.5 | 0.5/72.5 |
| Power Requirement | KVA | 20 | 20 | 20 |
| Floor Space | mm/inch | 2400 x 1935 / 94x 76 |
2400 x 1935 / 94 x 76 |
2600 x 1935 / 102 x 76 |
| Weight | kgs/lbs | 3202 / 7059 | 3420/7539 | 3650 / 8046 |

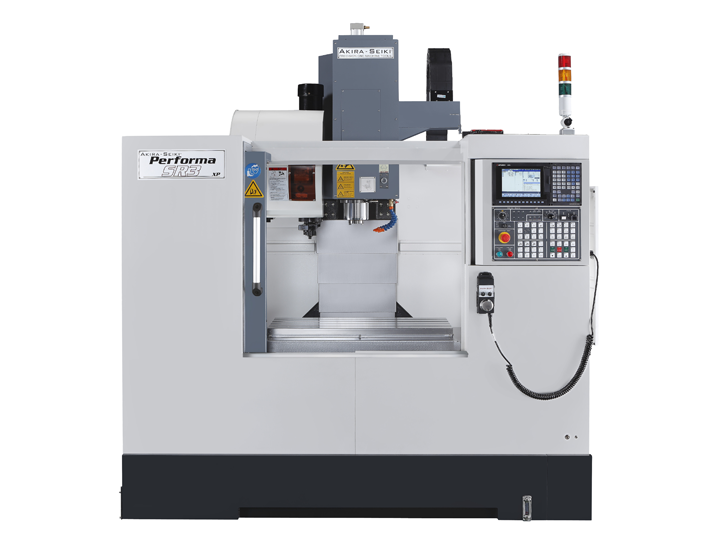

SR3 XP
Details
Overview Specs
| JR XP | SR2 XP | SR3 XP | ||
| CONTROL SYSTEM | AKIRA M:845 (Fanuc G code compatible) | |||
| TRAVEL | ||||
| X Axis Travel | mm/inch | 410 / 16.1 | 550 / 21.7 | 762 / 30 |
| Y Axis Travel | mm/inch | 430 / 16.9 | 430 / 16.9 | 430 / 16.9 |
| Z Axis Travel | mm/inch | 460 / 18.1 | 460/ 18.1 | 460 / 18.1 |
| Spindle Nose to Table Surface | mm/inch | 75~535/3~21 | 75~535/3~21 | 75~535/3-21 |
| Spindle Center to Column Cover | mm/inch | 435/ 17 | 435/17 | 435 /17 |
| TABLE | ||||
| Table Size (L x W) | mm/inch | 560 x 380 / 22 x 15 |
700 x 380 / 28 x 15 |
910 x 380 / 36 x 15 |
| T Slot | mm/inch | 16 x 80 x 4 slots / 0.63 x 3.15 x 4 slots |
16 x 80 x 4 slots/ 0.63 x 3.15 x 4 slots |
16 x 80 x 4 slots/ 0.63 x 3.15 x 4 slots |
| Max. Loading | kgs/lbs | 432 /953 | 576 /1270 | 792 /1746 |
| Standard Loading | kgs/lbs | 360 /794 | 480/1058 | 660/1455 |
| SPINDLE | ||||
| Max. Motor Power (Peak) | HP | 12 | 15 | 15 |
| Max. Speed | rpm | 11,000 | 11,000 | 11,000 |
| Spindle Taper | ISO 40 | BT40 | BT40 | BT40 |
| FEED | ||||
| Rapid Feed X/Y/Z | M/min ipm | 36 /36 /30 1417/1417 /1181 |
36/36/30 1417/1417 /1181 |
36/36/30 1417/1417 /1181 |
| Cutting Feed X/Y/Z | M/min ipm | 12/12 / 10 472 /472 /394 |
12 /12 /10 472/472 /394 |
12 /12 /10 472/472 /394 |
| ACCURACY | ||||
| Positioning | mm/inch | 0.01 /0.00039 | 0.01/0.00039 | 0.01/0.00039 |
| Repeatability | mm/inch | ±0.003 / ±0.00012 | ±0.003/±0.00012 | ±0.003/±0.00012 |
| ATC | ||||
| Tool Storage Arm ATC | – | 16T | 20T | 20T |
| Max. Tool Diameter | mm/inch | 75/3 | 75/3 | 75/3 |
| Max. Tool Diameter (Without Neighbor Tool) |
mm/inch | 150 /5.9 | 150 /5.9 | 150 /5.9 |
| Max. Tool Length | mm/inch | 250 /9.8 | 250 / 9.8 | 250 / 9.8 |
| Max. Tool Weight | kgs/lbs | 7/15 | 7/15 | 7/15 |
| Tool to Tool Time (60hz) | sec. | 2.2 | 2.2 | 2.2 |
| GENERAL | ||||
| Tank Capacity | liter/gal | 150 / 39.6 | 150 /39.6 | 150 / 39.6 |
| Chip Disposal | – | Chip Screw | Chip Screw | Chip Screw |
| Air Pressure Requirement | Mpa/psi | 0.5/72.5 | 0.5/ 72.5 | 0.5/72.5 |
| Power Requirement | KVA | 20 | 20 | 20 |
| Floor Space | mm/inch | 2400 x 1935 / 94x 76 |
2400 x 1935 / 94 x 76 |
2600 x 1935 / 102 x 76 |
| Weight | kgs/lbs | 3202 / 7059 | 3420/7539 | 3650 / 8046 |
SR32 XP
SR42 XP
Details
Overview Specs
| GENERAL | |||
| Tank Capacity | liter/gal | 350 /92.5 | |
| Chip Disposal | – | Chip Screw | |
| Air Pressure Requirement | Mpa/psi | 0.5/ 72.5 | |
| Power Requirement | KVA | 30 | |
| Floor Space | mm/inch | 3370 x 2240 / 133 x 88 |
|
| Weight | kgs/lbs | 5800/ 12790 | |
SR45 XP
Details
Overview Specs
| GENERAL | |||
| Tank Capacity | liter/gal | 350 /92.5 | |
| Chip Disposal | – | Chip Screw | |
| Air Pressure Requirement | Mpa/psi | 0.5/72.5 | |
| Power Requirement | KVA | 30 | |
| Floor Space | mm/inch | 3450 x 2495 / 136 x 98 |
|
| Weight | kgs/lbs | 7810/17218 | |

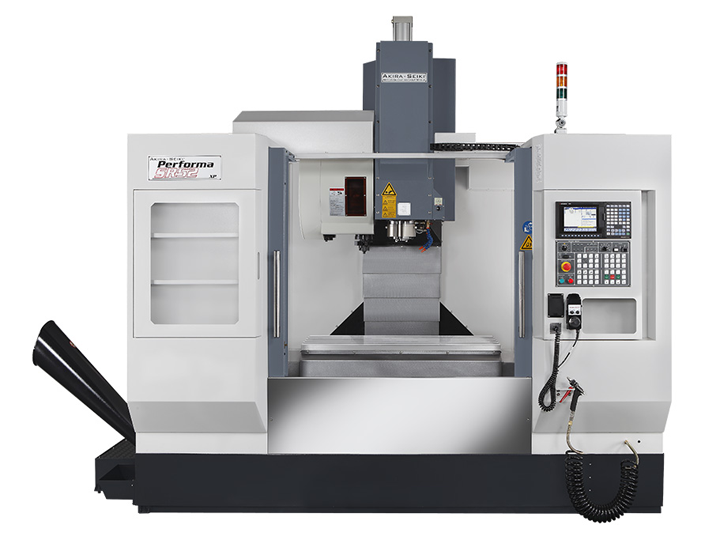

SR52 XP
Details
Overview Specs
| GENERAL | |||
| Tank Capacity | liter/gal | 400 /105.7 | |
| Chip Disposal | – | Chip Screw | |
| Air Pressure Requirement | Mpa/psi | 0.5/72.5 | |
| Power Requirement | KVA | 30 | |
| Floor Space | mm/inch | 3870 x 2240 / 154 x 88 |
|
| Weight | kgs/lbs | 6600/14553 | |
Details
Overview Specs
Travel: 8 x 22 x 25.2 x 4.4 in
Table Size: 13.2 in
Spindle: 4.5k, 178lb/ft @ 1100
Tool Capacity: 12 Station
Machine Weight: 14,520 lb
SR55 XP
Details
Overview Specs
| GENERAL | |||
| Tank Capacity | liter/gal | 400 / 105.7 | |
| Chip Disposal | – | Chip Screw | |
| Air Pressure Requirement | Mpa/psi | 0.5/72.5 | |
| Power Requirement | KVA | 30 | |
| Floor Space | mm/inch | 3870 x 2495 / 154 x 98 |
|
| Weight | kgs/lbs | 8110/17879 | |
